Vectors

The Vector2, Vector3 and Vector4 classes are used for 2, 3 and 4 dimensional vector representations. Vector instances are immutable; once a Vector has been instantiated its values cannot be changed.

val v2 = Vector2(1.0, 10.0)
val v3 = Vector3(1.0, 1.0, 1.0)
val v4 = Vector4(1.0, 1.0, 1.0, 1.0)

Standard vectors

Vector2.ZERO    // (0, 0)
Vector2.UNIT_X  // (1, 0)
Vector2.UNIT_Y  // (0, 1)

Vector3.ZERO    // (0, 0, 0)
Vector3.UNIT_X  // (1, 0, 0)
Vector3.UNIT_Y  // (0, 1, 0)
Vector3.UNIT_Z  // (0, 0, 1)

Vector4.ZERO    // (0, 0, 0, 0)
Vector4.UNIT_X  // (1, 0, 0, 0)
Vector4.UNIT_Y  // (0, 1, 0, 0)
Vector4.UNIT_Z  // (0, 0, 1, 0)
Vector4.UNIT_W  // (0, 0, 0, 1)

Vector arithmetic

The vector classes have operator overloads for the most essential operations.

left operand	operator	right operand	result
VectorN	+	VectorN	addition of two vectors
VectorN	-	VectorN	subtraction of two vectors
VectorN	/	Double	scaled vector
VectorN	*	Double	scaled vector
VectorN	*	VectorN	component-wise multiplication (l.x * r.x, l.y * r.y)
VectorN	/	VectorN	component-wise division (l.x / r.x, l.y / r.y)

Some examples of vector arithmetic in practice

val a = Vector2(2.0, 4.0)
val b = Vector2(1.0, 3.0)
val sum = a + b
val diff = a - b
val scale = a * 2.0
val div = a / 2.0
val cwdiv = a / b

Vector properties

property	description
length	the length of the vector
normalized	a normalized version of the vector

Swizzling and sizing

Vector2 swizzles allow reordering or sizing of vector fields. This is a common pattern in GLSL.

val v3a = Vector2(1.0, 2.0).vector3(z = 0.0)
val v3b = Vector2(1.0, 2.0).xy0
val v3c = Vector2(1.0, 2.0).xy1
val v4a = Vector2(1.0, 2.0).xy01
val v2a = Vector3(1.0, 2.0, 3.0).xy
val v2b = Vector3(1.0, 2.0, 3.0).yx

Let/copy pattern

Here we present two patterns that make working with immutable Vector classes a bit more convenient.

The copy pattern (which comes from Vectors being Kotlin data classes)

val v = Vector2(1.0, 2.0)
val w = v.copy(y = 5.0)      // (1.0, 5.0)

The let/copy pattern, which combines Kotlin’s let with copy

val v = someFunctionReturningAVector().let { it.copy(x = it.x + it.y) }

Mixing

Linear interpolation of vectors using mix()

val m = mix(v0, v1, f)

which is short-hand for

val m = v0 * (1.0 - f) + v1 * f

Randomness

Generating random vectors with minimum and maximum values

val v2 = Vector2.uniform(min = -1.0, max = 1.0)

val v3 = Vector2.uniform(
    min = Vector2(50.0, 50.0),
    max = Vector2(200.0, 100.0)
)

// A list with 10 random points
val points = List(10) {
    Vector2.uniform(0.0, 1.0)
}

To generate other random distributions of vectors see orx-noise.

Polar coordinates

Sometimes we may need to specify positions using angles and distances instead of x and y values. For such cases we can use Polar (2D) and Spherical (3D).

val p = Polar(theta = 45.0, radius = 100.0)
val s = Spherical(theta = 30.0, phi = 90.0, radius = 100.0)

Since drawing operations don’t accept Polar or Spherical coordinates, we can use the .cartesian method to convert them back to something we can use for drawing.

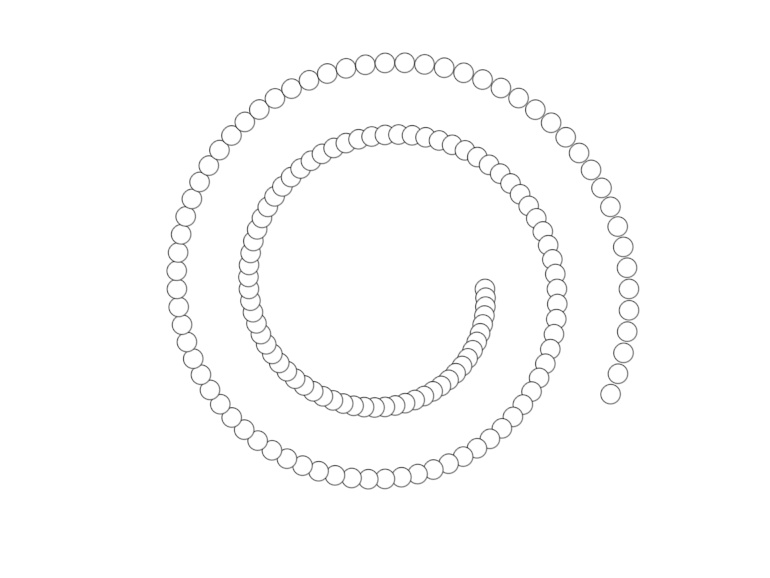

Here an example drawing 150 small circles with increasing theta and radius to form a spiral.

fun main() = application {
    program {
        val points = List(150) {
            drawer.bounds.center + Polar(it * 5.0, it + 100.0).cartesian
        }
        extend {
            drawer.clear(ColorRGBa.WHITE)
            drawer.circles(points, 10.0)
        }
    }
}

Link to the full example

The reverse operation of .cartesian, that is, to convert Cartesian coordinates to Polar or Spherical, use these methods:

// Polar(theta=45.0, radius=1.4142135623730951)
val p = Polar.fromVector(Vector2.ONE)

// Spherical(theta=90.0, phi=90.0, radius=1.0)
val s = Spherical.fromVector(Vector3.UNIT_X)
